Here at Meridian we offer a range of Roof Glazing Bars Systems, for timber supported roofs, glass roofs and self support glazing systems.

PVCu CAPPED RAFTER SUPPORTED BAR.

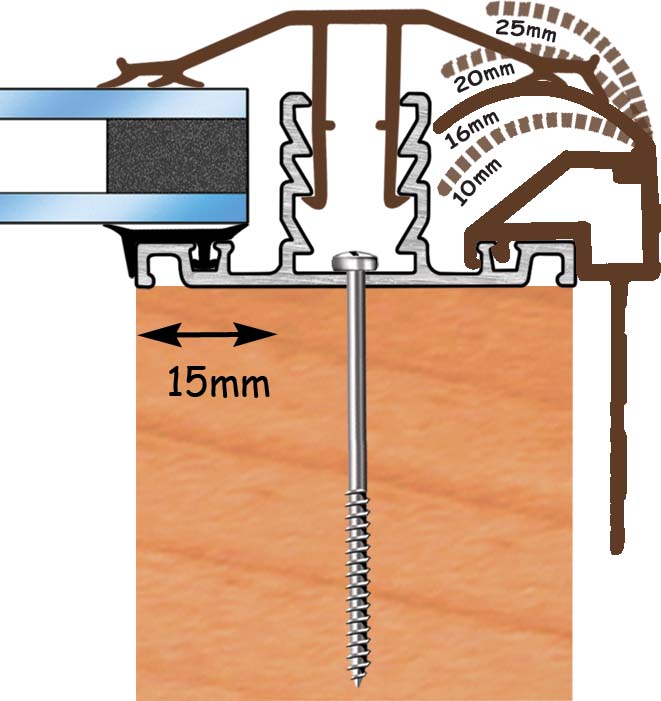

A strong lightweight easy to fit  roof glazing bars that is ideal for most applications such as lean-to’s and shelters. A gable end (side trim) can be fitted to make an end bar and finish off the roof. Glazing bars and Gable Ends are available in either White or Brown PVCu and in 2.5M, 3M, 4M, 5M & 6M lengths.

• Easily fitted – snaps into place
• Heavy Duty Aluminium base sectiom with tough UV stable upper section.
• Suitable for use with Polycarbonate 10mm – 25mm thick.
• Comes with bar end cap.

To Purchase Rafter Supported Roof Glazing Bars Click HERE

ALUMINIUM CAPPED RAFTER SUPPORTED ROOF GLAZING BAR

A robust maintenance free glazing bar that accommodates all popular thicknesses of Multiwall Polycarbonate sheeting and is ideal for installation where extreme variations in temperature are experienced. It is also suitable for holdimg glass panels in roofing applications when supported on a timber joist. The bars are available in either White or Brown painted aluminium and in 2.5M, 3M, 4M, & 6M lengths.

• Aluminium capping with quality painted finish.
• Suitable for 10mm, 16mm, 20mm, 25mm & 35mm Polycarbonate Sheeting.
• Full width TPR gasket eliminates the need for aluminium base.
• Fitted with screws and cap & washer sets.

To Purchase Aluminium Capped Roof Glazing Bars Click HERE

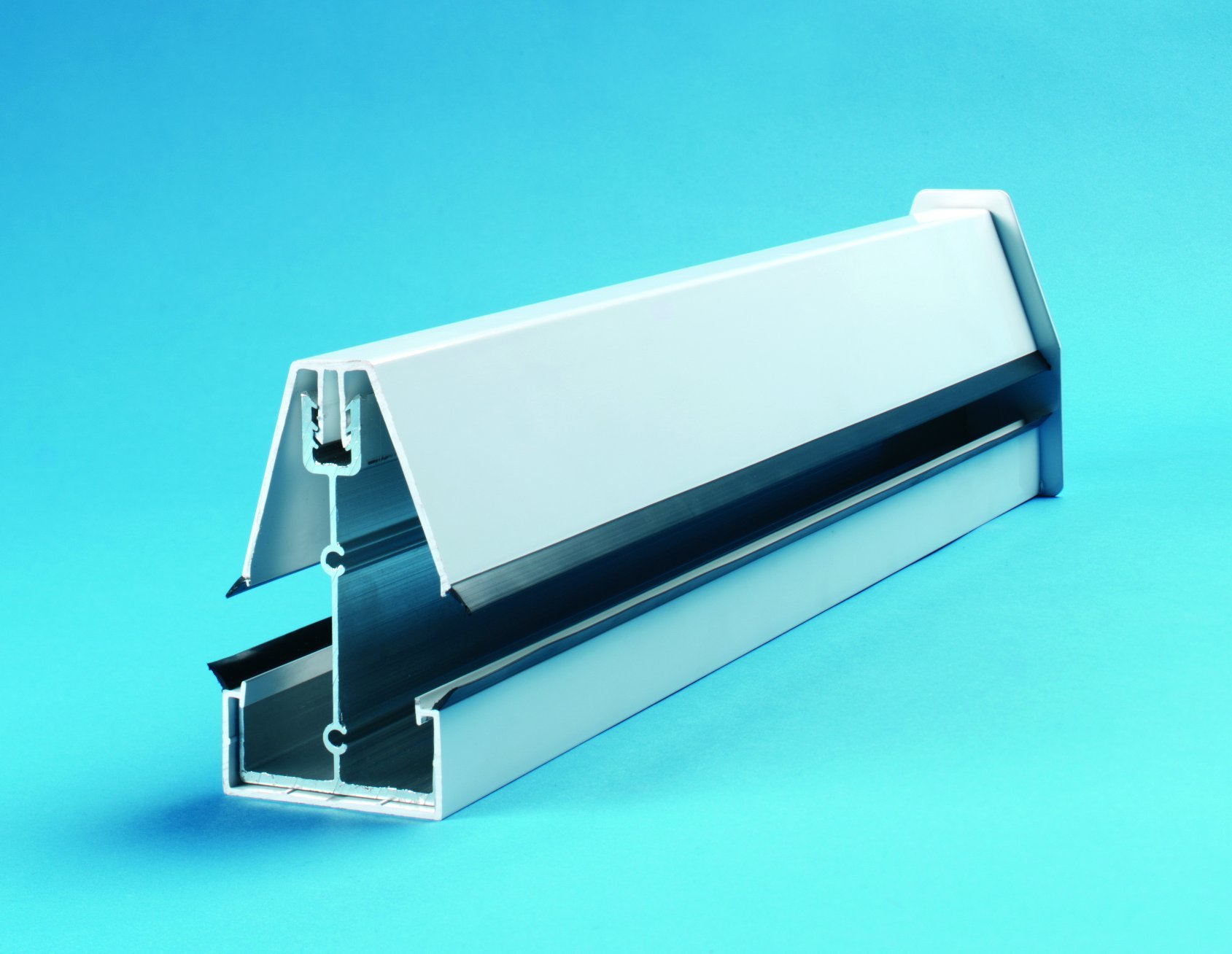

SELF SUPPORT GLAZING BAR SYSTEM

Our self support glazing bar system is specifically designed as a Lean-to Roof system for use with 16 to 35mm Multiwall Polycarbonate Roofing sheet. The bars are capable of spanning up to 4 metres (set at 600mm centres) without any cross bearers (purlins). We recommend a minimum of 10 degrees roof pitch with this system.

The system includes 4 main components; Wallplate, End Bar, Intermediate Bar and Eavesbeam.

For Lean-To Roofs to take a load of 600N/M2
